Dingo Mini Digger – K9CT

Our most powerful Diesel Tracked Mini Digger.

Features:

  • 27HP diesel engine with track drive for challenging terrains.
  • Heavier and more stable, ideal for gradient and slippery conditions.
  • 440kg lifting capacity for robust operational requirements.
  • Superior traction and reduced ground disturbance.
  • Diesel power ensures reliability and reduced fuel consumption.
  • High-torque performance for intensive digging and landscaping tasks.

The Dingo Mini Digger K9CT is manufactured in Australia by Dingo Australia, working as hard as you do!

FIND YOUR NEAREST

FIND A DEALER * Link opens your closest Dingo dealer.

Category:

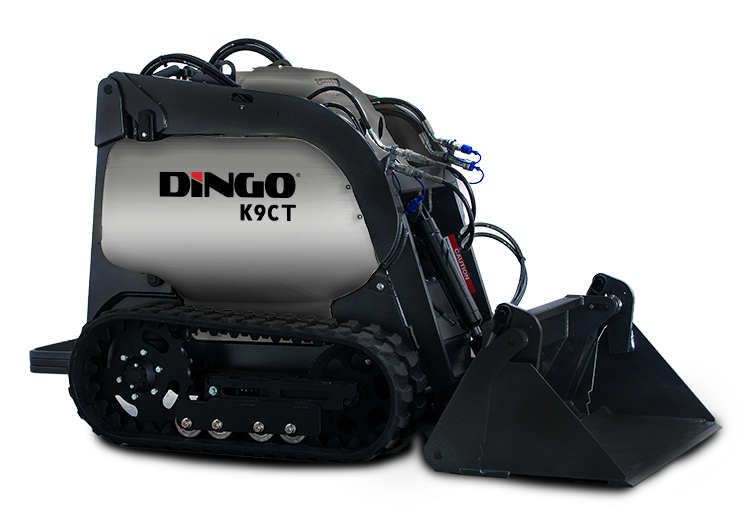

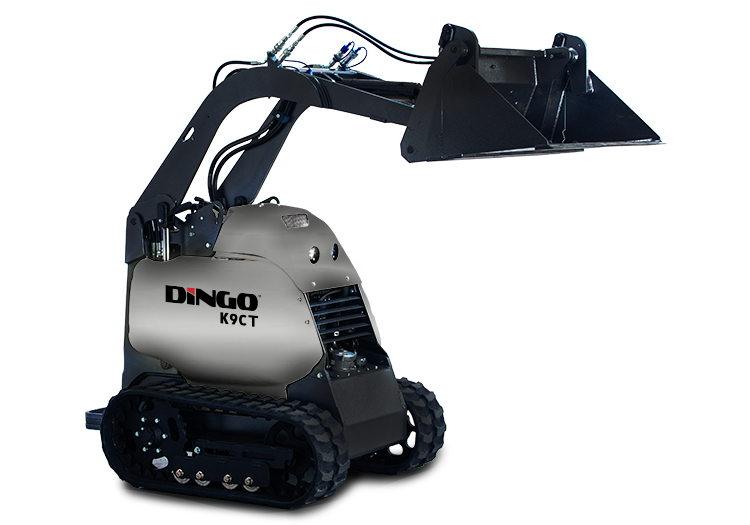

Dingo Mini Digger – K9CT

Dingo Mini Digger – K9CT is designed and manufactured exclusively for by Dingo Australia. The K9CT is our 27HP Diesel Tracked contractor model that boasts an impressive 440KG lift. It is our top of the range Tracked mini digger and is the ideal machine for those who will use it all day, every day.

The K9CT mini digger features 3 High Flow Hydraulic pumps (the K9DT has 2 pumps) that deliver 73 L/m and 30.75 Hydraulic Horsepower which will power you Dingo Certified attachments through the toughest conditions.

The Dingo tracked mini loader is ideal for sensitive or difficult ground conditions. Ideally suited for working on grass, in sand or muddy conditions the Dingo tracked mini loaders are a versatile loader. Achieve more with the 440KG lift to 1550mm dump height with the standard bucket.

Powered by the 27HP Yanmar diesel engine, the K9CT Model is the ideal mini digger for worksites and contractors. The lean fuel burn of the Yanmar motor, delivers excellent fuel economy reducing running costs.

You want the very best – and that’s what a K9CT model provides consistently – day after day, year after year! Combining the unique hydraulic design with the Yanmar engine, provides the perfect partnership of power, pressure and durability for every application. The K9CT has the most robust chassis on the market – this moves the weight down to the track where you need it. The lower center of gravity gives you best in class traction and trenching up to 30% more pull and 30% more push power.

Our proven bushing system has no steel-on-steel wear – which means no grease, no mess resulting in less maintenance and longer machine life! Protected by our touch powder-coated finish, our K9CT model will stand up against harshest of conditions.

You can request a quote directly from us or visit our Australian Distributors website to Find your Closest Dealer.

1. Direct drive trax systemThrough 2 specifically designed and OEM manufactured Hydraulic Drive Motors
2. High flow auxiliary hydraulicFor powering attachments through the toughest conditions.
3. Grease free maintenanceFor Lower Cost maintenance and Quick hitch system.
4. 180° accessSafer for operators – no risk of being trapped from behind and side bars.
5. Soft touch controlsMinimise fatigue while providing accurate control.
6. 1,855mm liftLifts into utes & most trucks, tips over fences.
7. Rupture resistant fuel tankFull vented cap with true-fill opening for easier refuelling.
E&OE (Errors and omissions excepted
Engine3TNV76
Engine makeYanmar
Engine horsepower27HP
Hydraulic horsepower30.75 hhp
Hydraulic pumps3 pumps
Pump sizes6, 8.4 & 8.4cc
Relief pressure (AUX)3,400 psi (235 bar)
Hydraulic output73 L/m
Max travel speed9.5 km / h
Rated lift capacity440 kg WLL
E&OE (Errors and omissions excepted
Overall width1020mm
Overall length1600mm
Overall height1225mm
Max operating height 4 in 12680mm
Turning radius with 4 in 1 bucket1300mm
Angle of departure25º
Wheel base800mm
Ground clearance155mm
Dump height standard bucket1550mm
Dump height 4 in 1 bucket1870mm
Reach fully raised 4 in 1 bucket800mm
Height to hinge pin1985mm
Machine width 4 in 1 bucket1050mm & 1200mm
Hydraulic reservoir capacity76L
Machine mass1180kg
E&OE (Errors and omissions excepted
Dingo Warranty5 years/5000hrs
